15TH MAP ROOM

INDEX


There were 43 Provinces and
4 Military Regions (MR)
in South Vietnam
during the Vietnam War

     (Note: I Corps was north and
IV Corps was south)


Provinces and Cities in South Vietnam:


 I Corps  - Quang Tri, Thua Thien, Quang Nam, Quang Tin, Quang Ngai, Hue, Da Nang

 II Corps  - Kontum, Binh Dinh, Pleiku, Phu Bon, Phu Yen, Dar Lac, Khanh Hoa, Ninh Thuan, Tuyon Duc, Quang Duc, Lan Dong, Binh Thuan, Can Raah

 III Corps  - Binh Tuy, Long Khanh, Phou Long, Binh Long, Dinh Duong, Tay Ninh, Hay Hghia, Bien Hao, Phuoc Tuy, Long An, Gia Dinh, Vung Tau, Saigon

 IV Corps  - Go Cong, Kien Tuong, Kien Phong, Dinh Tuong, Kien Hoa, Vinh Binh, Vinh Long, An Giang, Kion Giang, Chunong Thion, Phong Dinh, Ba Xuyen, An Xuyen, Duc Liou


LZ Locations in the 7th Battalion/15th Field Artillery Area of Operations

Note that some locations have more than one grid due to either being large, or having certain unit sections at one area in a Landing Zone.

PLEIKU A.O.

ZA Grid is W. of Pleiku, half way to Cambodian Border, N. to just past Polei Kleng, S. to Plei Me.

ZA 109-273  LZ OASIS   3rd BN, 4th INF DIV AO Forward Fire Base

ZA 109-271  CATECKA TEA PLANTATION 5km W. inter/sect QL’s 14 & 19W

ZA 114-275  LZ OASIS AF/THANH AN, Tuttle AF: ZA104-274 - Le Thanh: ZA10-27

ZA 114-670  PLEI MRONG 23km NW Pleiku, 25km SW Kontum  SF Camp

ZA 032-934  POLEI KLENG 16km W. Kontum Montgnard Village/SF CIDG Camp

ZA 061-738  LZ BOBBIE or ZA 097-834? 22km SW Kontum

ZA 090-685  VILLAGE

ZA 097-834  FSB PATT 15km WSW Kontum: ( City: AR77-80 )

ZA 163-049  PLEI ME 44 km SSW Pleiku W. off QL14

ZA 182-527  Pleiku Ammo Supply Point, Plei Mrong Rd. 10km NW Pleiku

ZA 184-903  PLEI KLENG Airfield

ZA 195-350  C/7/15th 30 Nov. 68 OPCON 2/8th INF

ZA 18-35     2km W Catecka Airfield Village - Tea Plantation: ZA199-340

ZA 195-685  LZ JOYCE

ZA 202-341 to 351  CATECKA PLEIKU AIRFIELD 10-12km NE Oasis AF

ZA 207-345  “THE STADIUM” Along QL19B 6km WSW intersect

QL19/QL14

ZA 21-35     Catecka Base Camp - Adj. Tea Plant. Aka: “The Stadium”

ZA 204-214  LZ OUTRIDER also ZA 200-170 26km SSW Pleiku

ZA 218-342  PZ MUSTANG III ( PZ = Troop Pick-up Zone )

ZA 220-465  Observation Post 10 7km SW Pleiku, 7km WSW Holloway

ZA 226-535  HQ 42nd ARVN jus S. of Pleiku/Nansteph AF

ZA 228-533  ARTILLERY HILL Camp Enari at one time FB Kelly

ZA 227-840  LZ MARY LOU   ZA 027-934: LZ BASS 24km WNW Kontum

ZA 230-354  Camp St. Barbara 3km E. Catecka AF, if 230-534: QL14 S. Pleiku

ZA 230-376  PLEI GAO THONG 7km SSW Camp Enari 4th DIV ORLL

ZA 234-825  VILLAGE

ZA 240-501  Pleiku Heliport 3km NNW Pleiku

ZA 460-245  Le Thanh Dist. HQ’s along QL14 22km S. Pleiku

YA Grids: Same area N. & S. as ZA Grids, and W. of ZA grids to the Cambodian Border

YA 841-247  DUC CO QL19W 13km to Cambodia, 55km SW Pleiku

YA 809-234  LZ JEAN  5km SW. of Duc Co

YA 834-178  LZ VERA   8km SE. of Duc Co, Plei Girao Kot, inter/sect Rd’s 568/569

YA 844-252  LZ JOAN  up to 3km SE. of Duc Co AF

YA 846-249  5th Spec. Forces Camp A-253

YA 902-315  LZ JACKSON HOLE  Le Thang   20km WNW LZ Oasis

YA 936-271  CAV. HILL also YA 922-270 8km ENE Duc Co AF, 37km WSW Pleiku

YA 849-257  VILLAGES  Duc Co

YA 80-07 to 90-07  IA DRANG VALLEY N. to S.

YA 820-095  LZ MARY  Ia Drang Valley, 1st battle 3 Nov. 65

YA 764-326  FSB MARY SOUTH 12km NW DucCo

YA 815-309  LZ KAREN 7km due W. LeThanh, 6km NW DucCo

YA 903-505  LZ BETTY 34 km W/WNW. Pleiku

YA 935-010  LZ X-RAY  Ia Drang Valley

YA 943-043  LZ ALBANY  Ia Drang Valley 17km W. Plei Me

YA 842-091  LZ VIRGINIA LEE  Duc Co

YA 998-217  Tigers Spotted 1-3/69 1/35th Daily Log

YA 999-219  LZ CHARMAINE  Tiger assault C/1/35th Inf 30 Jan. 69, 2/9 FA: UFO’s!

YA 857-535  LZ PLEI DJERENG “Old” C/7/15th 7/68 36km NW Pleiku 5th SP A-214

YA 850-450  LZ PLEI DJERENG “New”

YA 962-855  LZ BRILLO PAD 10km SW Polei Kleng

YB & ZB Grids: N to NNW of Pleiku

YB 865-255  BEN HET 13km E. Tri-Border, 15km WNW Dak To

YB 895-406  DAK SEANG AF 23km NW DakTo AF, “Ranger Camp”

YB 935-188  FIRE BASE 6  Hill 1001 7km NW Hill 1338

YB 989-152  HILL 1338 6km SSW DakTo II

ZB 060-220  TAN CANH Inter/Sect. QL 14 & Rte 512 to Ben Het

ZB 043-225  DAK TO & Spec. Forces Camp “New” 42km NW Kontum

ZB 05-26?    DAK TO Spec. Forces Camp “Old”

ZB 044-024  DAK TO I AF 41 km NW Kontum

ZB 012-216  DAK TO II AF 40km NW Kontum, 3km SW DakTo I

ZB 125-163  LZ MUD 13km SE Dak To 2 AF

AR Grids: East of Pleiku, same as ZA Grids North  to South

AR 802-472  CAMP HOLLOWAY N. side of QL19, 4km due E. Pleiku

AR 803-339  HENSEL AIRFIELD at Camp Enari

AR 802-350  CAMP ENARI 13km SSE Pleiku

AR 896-116  WEIGT-DAVIS 37km SSE Pleiku

AR 777-368  DRAGON MTN. Hill1028  NE. Enari 7/15th FA: Target Pract/Arty. Hill

AR 778-899  LZ ATHENA A/7/15th 4-10/71  NE. edge of Kontum

AR 797-348  ARTILLERY HILL in Camp Enari, Pleiku

AR 77-80      KONTUM CITY QL14 35km N. Pleiku

AR 939-480  PUMP STATION 10 used by C/7/15th FA at LZ Blackhawk early 69

AQ Grids: ESE Pleiku, most due south off QL14

AQ 793-026  BAN ME THOUT QL14 50km E. Cambodia, 130km WNW Nha Trang

AQ 883-018  FSB BAN ME THUOT “East”  C/7/15th 4/68

AQ 88-99      LZ GRAY  QL14 50km SSE Pleiku named: KIA 1LT Gray C/7/15th FA

AQ 868-994  LZ LONELY  QL14 7km SSW Phu Nhon: AQ88-99,  C/7/15th 4/71

BR Grids: East of Pleiku to Qui Nhon Coastal area. Same as AR Grids North to South.  BS  Grids: Due South BR Grids

BR 020-510  SOUI DOI  25KM ENE Pleiku near Inter-Sect QL19/QL14 to Kontum

BR 035-535  LZ BLACKHAWK  N. side QL19E, 25km ENE Pleiku at Suoi Doi

BR 223-520  MANG YANG PASS QL19 26km WNW AnKhe & W. to Suoi Doi

BR 264-470  LZ ACTION  On QL19E MangYang Pass 23km W AnKhe C/7/15th 4/69

BR 27-48      LZ BUFFALO  5km E. MangYang Pass, 3km N. LZ Action

BR 227-529  FRENCH CEMETARY QL19E 15km from AnKhe AF Grp Mob. 100

BR 340-461  OLD FRENCH FORT Grp. Mobile 100 - 25 June 1954

BR 363-457  LZ SCHUELER On QL19E 13km W. AnKhe B/C/7/15th FA 4-10/71

BR 470-480  CAMP RADCLIFF AnKhe “Golf Course” QL19E 60km NW Qui Nhon

BR 477-435  DODGE CITY aka “Sin City” Red-Light Dist., on dirt road tank trail

BR 613-607  LZ HARDTIMES Vinh Thang Valley 20km SE camp Radcliff 7/15th FA

BR 615-643  LZ PLUTO Vinh Thang/Happy Valley 36km NW Phu Cat C/7/15 4/24/68

BR 616-608  LZ JUPITER 23km NE AnKhe ( AN KHE: BR48-43, Pass: BR582-438 )

BR 625-556  HAPPY VALLEY 20km NW AnKhe 22NVA Regt. AO ( also: BR82-65 )

BR 685-420  LZ DIAMONDHEAD Binh Khe 22km ESE AnKhe on QL19E C/7/15 68

BR 745-517  LZ COLT 14km NW PhuCat

BR 80-84 to  BR86-77 “506” VALLEY 18km S. Bong Son, 9km W. QL1

BR 808-832  LZ PONY HaTay, just S. inter/sect Rte’s 605/TL3A 13km SSW BongSon

BR 846-947  LZ TWO BITS 2km inter/sect QL1 & Hwy 514, adj. to Bong Son AF

BR 851-550  LZ JENNY 38km ENE AnKhe, ROK LZ, C/7/15th FA 5/68

BR 881-005  LZ DOG became LZ English 7km NNE Bong Son

BS 878-015  LZ ENGLISH or BR 879-005 5km NNE Bong Son

BS 883-068   LZ ZAEGER An Lao River Valley N. of LZ English

BS 883-056   LZ NORTH ENGLISH Bong Son  N. of LZ ENGLISH

BR 872-958  BONG SON on QL1 75km NNW Qui Nhon VC Valley: 90-93

BR 888-570  LZ HAMMOND W. side QL1, 10km NNW Phu Cat

BR 892-659  LZ CRYSTAL 23km N. Phu Cat AF

BR 896-412  PHU CAT Air Force Base “Bordner Field” 5km SW Phu Cat

BR 90-76      MISS AMERICA MOUNTAIN Range N. & NW. LZ UpLift

BS 900-090   LZ TOM 3km E. of coast, 15km NNE Bong Son  A/7/15th FA

BR 915-433  CAMP FIDEL S. edge of PhuCat AF Base

BR 92-50      PHU CAT 32km N Qui Nhon Service-Btry/7/15th FA at W. edge AF

BR 924-752  LZ UPLIFT  QL1 ran thru, 12km SSE Bong Son HHB/7/15th FA 1967-69

BR 932-745  DUSTER HILL at ( LZ UpLift: also as BR’s 928-775, 927-749, 918-750 )

BR 935-467  LZ LINDA 4km ENE PhuCat AFB C/7/15th FA 5/68

CR Grids: East of BR Grids to E. Coast

CR07-76  HAWKS NEST 2km W. of coast, 28km SE Bong Son near LZ UpLift

CR 080-230 QUI NHON on E. coast, 28km SEe PhuCat, 64km ESE AnKhe

CR 0-2     RED BEACH in Qui Nhon on coast, In-Country R&R Center

CP Grids: Due South of CR Grids, along E. Coast

CP 00-15  CAM RANH BAY             32km S Nha Trang, Major US Installation

CP 042-534  NHA TRANG 1FFV HQ 24km N. Cam Ranh Bay

CP 05-32  22nd REPLACEMENT CENTER

CP 053-322  6th CONVALESCENT HOSP. 1300 Bed, 44th Med. Bde. 1968

Miscellaneous & Numbered Locations

AR 804-470  71st EVAC. HOSPITAL, 4th ID AO, Pleiku AF Base 11/66-12/70

CR 080-230  85th EVAC. HOSP. Qui Nhon Aug. 65-69 at Phu Bai 69-71

BS 72-23 to BR 80-90  AN LAO VALLEY then NE to Bong Son to Ocean

BR 96-36  AN NHON 18km NW Qui Nhon

BR 130-307  BASE 202 NVA/ “VC Valley” Staging Area 40 km WSW AnKhe

1st CAV HQ’s: AnKhe Sept. 1966 - Apr. 1969

4th INF DIV AO: Pleiku Upper Highlands Sept. 68 - Dec. 70 & AnKhe

173rd ABN: AnKhe Nov. 67 - Apr. 69

ROK  Republic of Korea 1st Tiger DIV BR/BQ/CR/CQ Grids 61st Arty Binh Khe

Most Grid Coordinates taken from “M-60” Mike Kelley’s Book: “Where We Were In Vietnam” [$39.95 at amazon.com] and various unit daily logs, archives, and history references including Firebases and LZ's by 15th Historian Dan Gillotti.

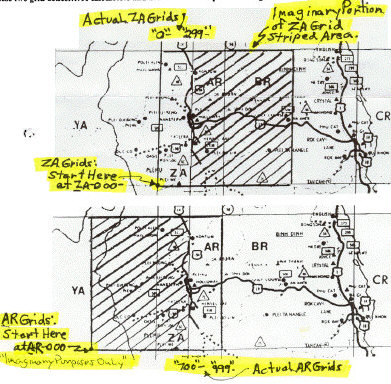

“A” & “Z” Map Grids are NOT Like Others!
By Dave Holdorf

The 108 degree East longitude line separates the ZA and AR grids in the Pleiku area, likewise the ZB and AS grids to the north in the Kontum area. These are the ONLY grids in Vietnam, “A” & “Z”, for the entire length of Vietnam, that are ONLY 20 to 30 kilometers in width!

However, you still use the same system to figure out “Where You Were!” ….BUT you must take this into consideration: The locations in the grids are found using imaginary boundaries as IF they were the same as all the rest in Vietnam. Without going into detail, just think of them as normal 100 kilometer girds overlapping without being able to see the entire grid.

THUS: The “First” 3 numbers indicating East-to-West in “Z” grids never begin with a number larger than “2”! Those range from for instance, ZA000-??? to ZA299-??? Imagine the width of that zone as (3) three digits wide vs 10 as the others are.

The “First” 3 numbers indicating East-to-West in “A” grids never start w/a number lower than “7”.  Those range from for instance, AR700-??? to AR999-??? Again, imagine three digits wide.

The “Second” three numbers, North to South coordinates, are the same as all the rest in these two grid zones…100 kilometers and broken into 10 equal areas/digits.

Vietnam grids



Locations of 7/15th FA Batteries
May 1968 - May 1969

HHB   LZ Uplift
Service Battery Phu Cat
'A' Battery LZ Tom
'B' Battery Artillery Hill, LZ Uplift, Polei Kleng, LZ Schueller
'C' Battery   LZ Diamondhead ("hipshoots" to LZ Pony, Jenny, Linda), Artillery Hill, LZ Oasis, Duc Co, Plei Djereng, LZ Blackhawk, LZ Action




7-15th Field Artillery Revised Vietnam Maps
By Dave "Davo" Holdorf

After many years using our first draft maps in which we asked our Vets to place the LZ’s we were at, we’ve re-drawn the original using grid coordinates. We believe this map reflects a more exact location of all LZ’s. Follow the RED line from the LZ Name to the RED DOT, that’s the exact location as per grid numbers.

In addition, we’ve split the entire Nam map into two sections for better and larger viewing. Grid LINES and grid ZONES have been added in RED. The map is SPLIT at the center horizontally, the Grid Line that separates ie: Zones BR & BQ.

You can use the other maps in the map room to help locate specific areas. Just read the how-to on using Grid Line Coordinates, and go from there.

Most of the LZ’s listed are those used by the 7/15th FA. If you want a great book for finding “YOUR” LZ’s, cities, hamlets and roads using grid locations, we suggest Mike Kelley’s “Where We Were in Vietnam."


NOTE: You will need Adobe Acrobat Reader installed on your computer to view these .pdf map files.  There are several places to download a free version of the Adobe software, including the IRS web site, and the link below:

Click here for free Reader

QL19 East - Qui Nhon to Pleiku
Hwy 1 - Duc Pho South to Tuy Hoa

Upper map half: Highways, Grid Zones, 7/15th FA LZ’s

Lower map half: Highways, Grid Zones, 7/15th FA LZ’s

Main Highways & Grid Zones

Topographical Map: Highways QL-1, QL-14 and QL-19

II Corps: Roads, Grid Zones, Airfields, and Directory

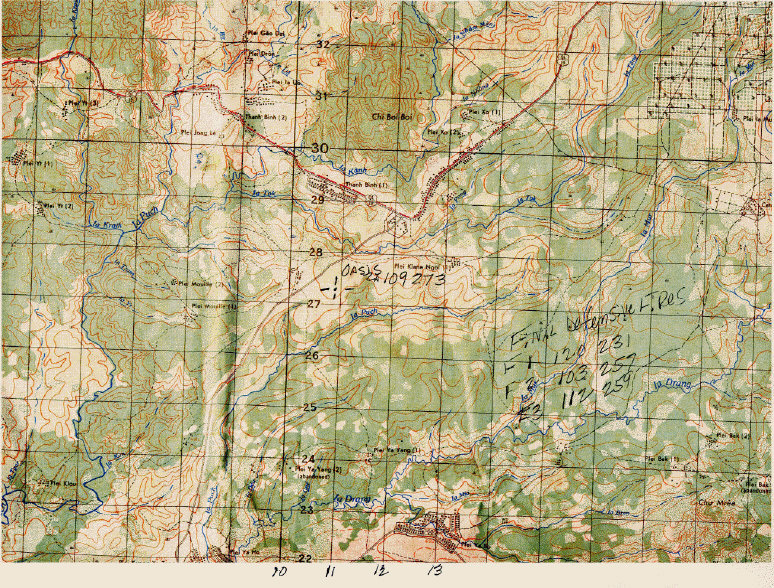

 LZ Oasis area of operations


Map credit: John McCarthy, Jr.

(Also see: List of Firebases, LZ's and Base Camps)


Sayings...

There was a Vietnamese saying about
 Vietnam concerning military strategy:

    "Whoever controls Highway 19 controls the Highlands,
      and whoever controls the Highlands controls Vietnam."

It's no wonder then that the "Eastertide Offensive" in 1973, and the final offensive in 1975, struck at the heart of the Central Highlands, in the 7/15th's former Area of Operations (AO).


Enemy Units:
In April of 1971, seven months before the 7/15th deactivated, the major enemy units reportedly located within or on the boundaries of the 7/15th AO are listed below:

UNIT

ESTIMATED STRENGTH

REPORTED LOCATION

66th NVA Regt

1800

Tri-Border

7th Bn / 66th Regt

300

YB9318

8th Bn / 66th Regt

300

YB9318

9th Bn / 66th Regt

300

YB9318

K-37 Sapper Bn

200

ZB062225

401st LF Sapper Bn

200

AQ3582

K-32 Bn / 40th NVA Regt

200

AQ821839

408th Sapper Bn

200

BR2541

K-31 / 95B

400

AQ8098

K2 / 95B

300

BR1340

8th LF Bn

600

BS801089

K-16th Bn / 40th Arty Regt

300

YB853247

K-20 Sapper Bn

200

ZA1996

406th Sapper Bn

200

ZB2105

28th Regt

1800

YB8554

28th Sapper Bn

200

YB8554

K-30 / 40th Arty Regt

300

YB8344

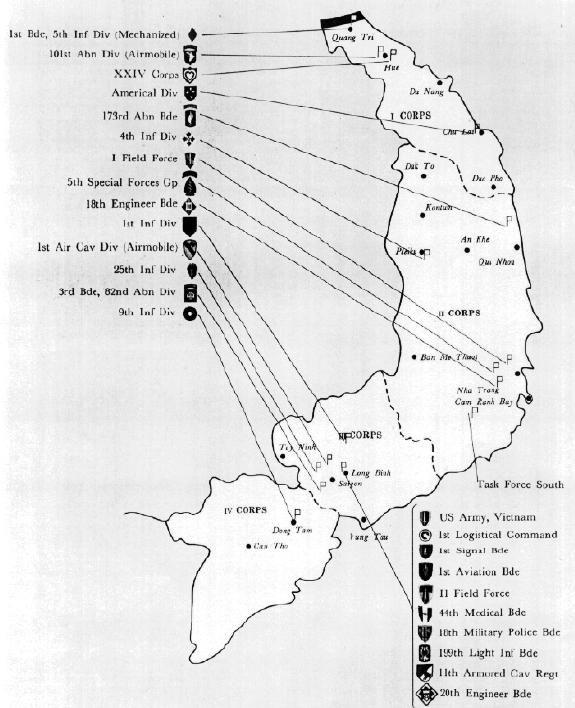

Major US Army Unit Locations
Summer 1969

(from "UPTIGHT" magazine)

Unit locations - Summer 1969

  (Click thumbnail image of map to enlarge)


Simplified Military Map Reading
By Dave "Davo" Holdorf

Trying to find that LZ or exact location you were in?
With the right maps and info, it’s really not that hard!

Most maps that were used in Vietnam by the military are those that have “Grids” laid over them. LZ’s and other locations are usually given by “Grid Numbers”. The Grid Number Location for AnKhe is BR477435.

The exact location can be found using a Vietnam map that has the “BR” grid shown as an over-lay. Using other maps in this folder, I’ve drawn the grid over-lay in red lines on the map shown below. Keep in mind that the grid lines are NOT the normal longitude or latitude lines that normally appear on maps.

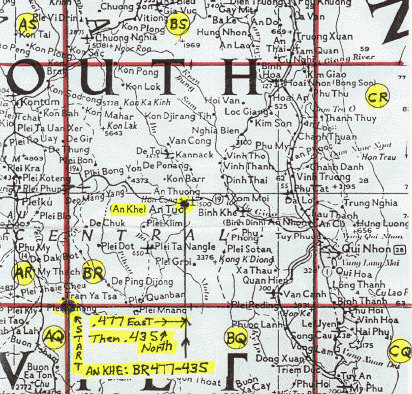

Vietnam Map Reading

So let's find the exact location of An Khe using a Military Grid over-lay. Notice that there are two vertical and two horizontal red lines on the map. I’ve tried to draw them as close as possible as they really are. See the RED letters “BR” indicating that the BR Grid is within the four red lines. There are also 8 other grids marked in red that surround the BR Grid.

ALL Vietnam grids use the same location method. All use the South-West corner of the grid to start the location method. In the case of locating An Khe, you start at the lower left corner of BR Grid which is located where all the grids AR, BR, AQ, & BQ meet at the large black dot at the city of Plei Kanong.

No matter what size map you’re using, imagine each side of the square grid as equaling 10 equal distances. Then give each section an amount or value of 100 linear parts. In which case, each side is equal to the number of 1000. A half-way point on any grid side is equal to 500. You can make a scale for your size map to make things easier.

An Khe is located at BR477435, which is actually BR 477-435. The first two letters are the grid, the first ( 3 ) three numbers are the ( E ) East coordinates, the last or second  ( 3 ) three numbers are the ( N ) North coordinates.

Starting at the SW corner on the bottom BR Grid line ( Plei Kanong ), move along the bottom grid line to the right, DUE EAST for a distance of .477 of the entire line, or just about half way to the far right grid line. This is the East coordinate of BR477. Then from that location, move up, or DUE NORTH for a distance of .435 of the entire distance between the top and bottom lines. This is the North coordinate of the last three numbers of BR477-435. Pretty simple stuff when you know the method. The hardest part is to properly locate the grid over an existing map, so that you start in the correct spot.

Once you located the first LZ or city, it’s then easy to find the other locations by the values given within the grid. A value lower than .477 in the first three digits of the number would be farther West, a higher value than .477 would be farther East. A higher value in the last three digits of the grid coordinate would be farther North, a lower value of the last three digits farther South.

Mike Kelley’s new book “Where We Were in Vietnam” [$39.95 at amazon.com] is a great book that gives locations for most areas of the Vietnam War.

Also see our large on-site page compiled by Dan Gillotti - Firebases & LZ's.


“Where We Were” April 1968 to April 1969
C-Battery, 7th BN, 15th Field Artillery

by Dave “Davo” Holdorf


This article will focus on the locations and information during my tour 5 Apr. 68 to 5 Apr 69.  Additional “exact” information as to pre-Apr. 1968 can be obtained from Michael Donley, who served with C-Btry. from the Unit’s landing in Qui Nhon June 1967 to March 1968 when he was transferred to the C/5/22nd FA.

Upon arriving in Vietnam, C-Btry. was located at base camp Phu Cat with the rest of the unit. The battery fired the BN’s first round on 16 July 67 at Binh Khe.

C-Btry. was GS ( General Support ) ( - ) as a spilt Battery to 1st Air Cav., and the ROK Tiger Div. at various LZ’s in the BR Grid “Coastal Region” to include LZ English BS 878-015 and LZ Pony BR 801-829.

1 July 67 : C-Btry. at Phu Cat w/Unit to set up base-camp, “Service Battery”.

July/Aug. 67 : C-Btry. completes mission at Svc-btry., displaces to LZ Pony.

4 Sept. 67 : C-Btry. 4th Gun Section fires 10,000th round.

31 Sept. 67 : GS ( - ) 2nd & 3rd  Platoon Gun-Sections s at LZ Pony, Two ( 2 ) at Binh Khe …I assume that to be LZ Diamondhead.

5 Nov. 67 : C-Btry. ( - ) retubed to 175mm at LZ Pony interdicting the area of Kon River Valley vic BR70-65.

30 Nov. 67 : C-Btry. ( - ) displaced to LZ  Jupiter BR 616-608, and returned to Binh Khe on 1 Dec. 67.

5 Jan. 68 : C-Btry. ( - ) displaced to vic BR 985-447

7 Jan. 68 : C-Btry. ( - ) LZ Pony 175mm Platoon displaced to LZ Jenny BR 851-550.

9 Jan. 68 : C-Btry. ( - ) retubed to 8-Inch, both platoons displaced to LZ Linda BR 935-467.

15 Jan. 68 : C-Btry. displaced to LZ  Uplift BR 928-775, mission of GSR - 1st Air Cav. Arty.

17 Jan. 68 : C-Btry. displaced to LZ English BS 878-015

27 Jan. 68 : C-btry. One ( 1 ) platoon displaced to LZ Jenny BR 616-608, ROK Oper., and returned to LZ English the same day.

31 Jan. 68 : C-Btry at LZ English at TET

2 Feb. 68 : C-Btry. experiences the BN’s first Vietnam War casualty: Timothy Lee White.

28 Feb. 68 : C-Btry. displaces to An Khe for a short fire mission, then on to Pleiku.

3 Mar. 68 : C-Btry. displaces to 30k’s North of Ban Me Thout on Hwy 14, firing numerous missions, “Hip-Shoot” style over a period of a few days, in support of 1/12th Task force…then displaced to Ban Me Thuot “East” AQ 883-018.

22 Apr.68 : C-Btry. displaces toward LZ Diamondhead via Plieku…near end 6wks Oper. Plus. 20k’s North of Ban Me Thuot C-Btry. fires another mission for 1/12th Task Force.

23 Apr. 68 : C-Btry. displaces to LZ Diamondhead. End of Operation Plus.

24 Apr. 68 : C-Btry. displaces to LZ Pluto BR 615-643 “Happy Valley”.

29 Apr. 68 : C-Btry. displaces to LZ Diamondhead, one howitzer hitting a command detonated land mine 1030hrs. 1530 hrs damaged gun repaired and made it to LZ Diamondhead.

May to late June 68, C-Btry. LZ Diamondhead w/missions to LZ’s Linda and Jenny “ROK”

Approx. July to Aug. 68 : C-Btry. at Artillery Hill AR797-348, Pleiku, w/GS ( - ) “Hip-Shoot” mission to Kontum and C-Btry. displaced to Plei Djereng YA 85-45. 4th INF DIV Area of Oper’s.

Approx. Sept. 68 : C-Btry. displaces to LZ Oasis ZA 114-275. Btry. Oper’d at LZ Oasis to Approx. Feb. 69. While there, unit experienced sapper’s infiltrating perimeter. Several VC KIA’d.

9 Oct. 68 : C-Btry. displaces to LZ Joan YA 845-252 Duc Co. GS 1/35th INF, 4th INF DIV.

19 Oct. 68 : C-Btry. displaces to LZ Oasis.

15 Nov. 68 : C-Btry. 2-548’s sent to LZ Vera YA834-178 to pull damaged guns from B/1/92nd FA which had extensive damage and casualties in two days of fighting.

16 Nov. 68 : C-Btry. ( - ) displaces to LZ Joan, Duc Co. While in convoy 1400hrs a command detonated land mine blows in between a 5-ton truck “pushing” and an FDC track vehicle that had a generator belt come off. Injured: FDC Sgt. Timothy J. Haslett, and Mechanic David E. Holdorf.

It’s believed the “Red Team” Troop C, 7/17th Air Cav. Cobra Gun-ships parked at LZ Oasis cleared the area minutes latter via rocket/mini-gun fire, to bring in the 283rd HEL AMB Medivac’s working the area. Both men were evac’d to 4th Med. Bn. Mash unit at LZ Oasis, then to 71st Evac. Hosp. Pleiku AF Base. Tim was sent to Japan, then state-side. Dave went to Cam Ranh Bay 6th Convalescent Hosp., returned to C-Btry in late Jan. 69. Oper. “Commando Hunt” in Laos begins.

25 Nov. 68 : 1/14th INF “Golden Dragons” joins Operation Binh Tay-MacArthur at LZ’s Vera and Jean YA 809-232, Duc Co, close to LZ Joan. Much enemy activity in the area.

30 Nov. 68 : C-Btry ( - ) displaces to grid ZA 195-350 OPCON to 1/8 INF in the area of LZ Oasis, at Cateka Tea Plantation.

Dec. 68 to late Jan. 69: C-btry. at LZ Oasis. Ground radar units were installed previously. At some time during this period, one tube C/7/15th FA was attached to 6/29th FA who’s Operation was in the Kontum/Dak To Plei Mrong/Polei Kleng areas in mid-Jan. 69, LZ Action in Feb. 69.

Approx. mid-Feb. 69 : C-btry. displaces to LZ Blackhawk BR 035-535 Soui Doi. While there, occasional rockets hit LZ, one landing in between motor pool hooch and mess hall.

Approx. 27 Mar. 69 : C-Btry. ( - ) two 8-inch guns join C/7/17th FA at LZ Action for direct fire into surrounding mountains. Previously and during stay, unit is mortared almost daily. Mechanic James Willmon is wounded per shrapnel in left leg, sent back to LZ Blackhawk.

2 Apr. 69 : C-Btry. ( - ) still at LZ Action. Author Dave Holdorf “Deros’s”.

April to Approx. Dec. 69 : C-btry. stayed at LZ Blackhawk. During this time, INF KIA’s were reported ambushed to me via letters at “Pump Station 10” AR 939-480.

10 Nov. 69 : C-Btry. experienced another War casualty as Gun-Section Redleg Earl Thomas Pearson is disintegrated by fire when a spark hits the powder charge he was carrying to the gun pit.


LINKS

Vietnam Travel Guide

Firebase and LZ Maps

Maps of II Corps and the Central Highlands

7/17th Cav Regiment (AIR) - Highlands maps + photos

69th Armor Page - Clickable maps of the Highlands

1967 Base Maps:  I Corps  II Corps  III Corps  IV Corps
